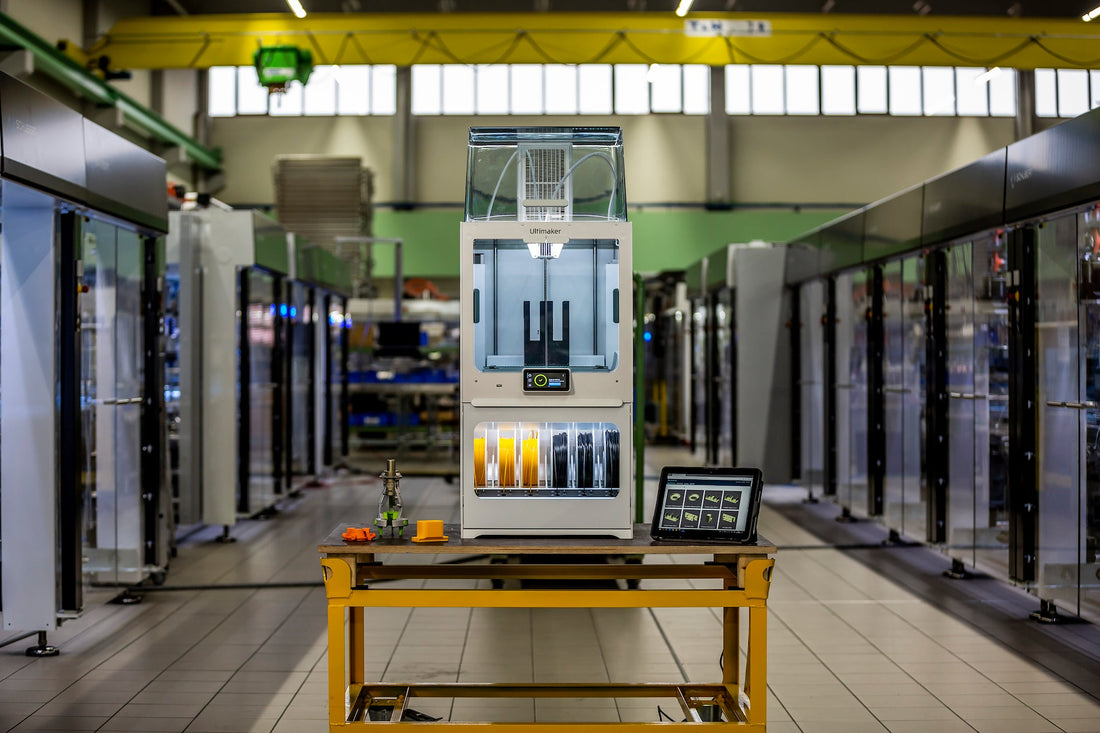

Jigs, Fixtures & Tooling: How New England Manufacturers Cut Costs with In-House 3D Printing

For most manufacturers evaluating industrial 3D printing for the first time, the conversation starts with finished parts. But some of the fastest, most reliable payback on a 3D printer comes from something less glamorous: the jigs, fixtures, gauges, and shop aids that keep a production line running. If you're trying to build the business case for an in-house printer, tooling is often the easiest place to start.

Why Tooling Is the Low-Risk Entry Point

Custom tooling has a specific set of characteristics that make it well suited to additive manufacturing. It's typically low-volume, often unique to a single part number or workstation, and traditionally produced by machining, which means real lead time and real cost for something that never touches a customer. A drill guide, a weld fixture, an inspection gauge, or a set of soft jaws for a CNC vise doesn't need to look pretty or carry a warranty — it needs to hold tolerance, survive the shop floor, and be available when the line needs it.

That combination — low volume, short lead time requirements, and functional rather than cosmetic requirements — is exactly where 3D printing outperforms outsourced machining or fabrication. A fixture that used to take two to three weeks to quote, machine, and ship can often be designed and printed in-house in a day or two, and iterated for free if the first version needs a tweak.

Matching the Printer and Material to the Job

Not all tooling applications have the same demands, so the right setup depends on what the fixture actually has to do:

Light-duty jigs and alignment fixtures that see occasional use and moderate mechanical load are a good fit for standard engineering filaments on a workhorse printer like the UltiMaker S6. Fast iteration matters more than extreme durability here.

Fixtures that see repeated clamping, drilling, or contact with cutting fluids and solvents need a tougher material. This is where Tectonic industrial-strength filament earns its keep — reinforced nylons and carbon-fiber-filled materials hold dimensional accuracy under repeated use and resist the chemical exposure common on a shop floor, in either 2.85mm or 1.75mm depending on your printer.

High-precision gauges, end-of-arm tooling, or fixtures that need to be dimensionally stable across a large build are where the larger build volume and dual-extrusion capability of the UltiMaker S8 or Factor 4+ pays off, particularly when a soluble support material is needed to hit complex internal geometry cleanly.

In every case, the right print core and extruder configuration matters as much as the printer itself — abrasive, fiber-filled materials require hardened nozzles to avoid premature wear, which is worth factoring into your total cost of ownership rather than discovering after the fact.

Where We See It Working on New England Shop Floors

Across the manufacturers, machine shops, and contract manufacturers we work with in Massachusetts and the rest of New England, the same handful of tooling applications come up again and again:

Assembly jigs and alignment fixtures that hold parts in a fixed position for manual or semi-automated assembly, cutting cycle time and reducing operator error.

Inspection and go/no-go gauges that would otherwise require a machinist's time on equipment better used for revenue-generating work.

Soft jaws and CNC workholding custom-fit to an irregular part, printed same-day instead of machined from aluminum stock.

Weld fixtures and drill guides that need to survive heat and repeated use but don't justify the cost of a hardened steel fixture for a short production run.

End-of-arm tooling for robotic cells, where lightweight, custom-geometry grippers reduce cycle time and payload compared to off-the-shelf options.

None of these are edge cases — they're the everyday friction points that add up to real labor and lead-time costs when tooling comes from an outside vendor. Bringing that work in-house doesn't just save money on any single fixture; it changes how quickly an engineering team can respond when a process needs to change.

Getting the Full Picture Before You Buy

The printer purchase is only part of the equation. Getting consistent, dimensionally accurate tooling also depends on print settings, material selection, and knowing which jobs are worth automating versus doing by hand — which is exactly what a good training and service package is meant to shorten the learning curve on. If you're weighing whether in-house tooling makes sense for your shop, or which printer and material combination fits your specific parts, we're happy to walk through it with you.

You can book a consultation with our New England team to talk through your applications, or request a quote if you already know the equipment you're evaluating.
